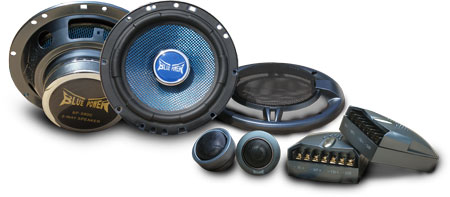

   COMPONENT SPEAKER



  FEATURE:
  • Ferro-Liquid cooled coil
  • Magnetic Neodymium mass with PEI cone tweeter
  • Sound diffusion horn with a 55° range
  • 5.5KHz filter @ 12dB/octave with Poly switch protection
  • High technology Ferrite magnet woofer with carbon, polypropylene Kevlar Cone


 Specification \ Model

 BP-S60C
Frequency Response 90 Hz ~ 22 KHz
Midrange rater power 70 W
Midrange maximum power 200 W
Sensitivity /1W /1M 91 dB
Impedance 4 Ω
Nnominimpedance 3.4 Ω
Emitting surface 0.0130m²
Moving mass 10.2g
Free air resonance frequency FS 85 Hz
Mechanical Q factor 4.8 Qms
Total Q factor 0.92 Qts
Cut 143 mm
Mounting Depth 58 mm
