Amplifier |
|
|
 |
| |
FEATURE:-
- Advance circuit design that
features bridgeable and mixed mode operation for us in various
systems, including those with satellite speakers and /or
subwoofers
- Variable high-pass/low-pass
electronic crossover with a 12 dB per octave slope and full
adjustable range (From 5 Hz ~ 5.5 KHz) to aid in audio system
design
- Variable bass boss circuit
to reinforce low frequency signals that may be lost due to
subwoofer box design
- Adjustable input
level controls with ground loop isolation accepting a wide range
of input signals
- Remote turn-on with "soft
start" muting to prevent turn-on "thump"
- Pulse-width modulated (PWM)
MOSFET power supply with low AM RFI and protection circuits for
overheating and speaker shorts
- 2 -Ω load capability to
drive a variety of speaker systems
- Nickel-plated input/output
connectors and an external automotive type fuse.
|
| |
|
Specification\Model |

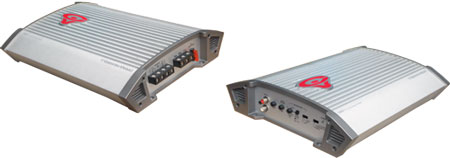

EXL 350.2 |
|
Frequency Response |
20 Hz ~ 20 KHz |
|
Signal Noise Ratio |
> 100 dB |
|
T.H.D |
0.5% All channels driven |
|
Input sensitivity low level |
250 mV ~ 5V |
|
4 Ω Stereo Output |
110 W x 2 @ 0.05% T.H.D |
|
2 Ω Stereo Output |
175 W x 2 @ 0.05% T.H.D |
|
4 Ω Bridge Power |
350 W x 1 @ 0.05% T.H.D |
|
Current Consumption at output
@ Max power |
43 A @ 382 Watts |
|
| |
