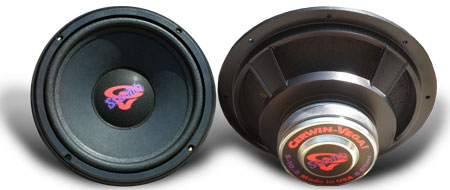

SUBWOOFER |
|
|
 |
| |
FEATURE:-
-
Die-cast,
non-magnetic aluminum frame for higher efficiency and improved
heat dissipation
-
High-energy,
magnetic structure for outstanding power handling capability
-
Voice coil
using aerospace materials for fast, linear response
-
Polyether foam
surrounds to resist damaging sun exposure
-
Advanced
adhesive technology for extended product life
|
| |
|
Specification\Model |
S 10.8 |
|
Woofer Size |
10" |
|
Sensitivity (1 W @ 1 M) |
93 dB |
Power Handling
(cont.unclipped power per EIA RS-426C) |
200 W rms (nominal)
400 W rms (maximum) |
|
Frequency Response |
40 ~ 500 Hz |
|
Nominal Impedance |
8 Ω |
|
Mounting Diameter |
9" (228.6mm) |
|
Mounting Depth |
4 1/16" (103.2mm) |
|
| |
