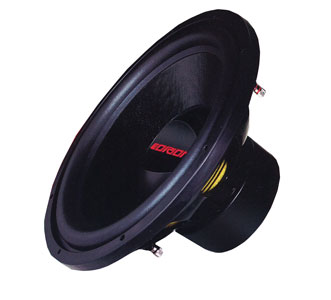

 SUBWOOFER |
|
|
Dual Coil |
| |
FEATURE:-
- Orion-designed steel
basket with rolled edges
- Mass-added paper cone
and NBR surround
- Poly cotton blend
spider and extended vented pole piece
- Gold-plated
strain-relief terminals
|
| |
|
Specification\Model |
P 15 D2 |
P 15 D4 |
|
Woofer |
15" |
15" |
|
Power Handling |
500/1000 peak |
500/1000 peak |
|
impedance |
2 Ω |
4 Ω |
|
Fs. |
29 Hz |
28 Hz |
|
Qts. |
.51 |
.51 |
|
Vas |
3.17 cuft |
3.79 cuft |
|
Sensitivity |
87.6 dB |
93.6 dB |
|
Linear Excursion |
14 mm |
14 mm |
|
Dimension |
13.875" / 6.875" |
13.875" / 6.875" |
|
| |
|
| |
|
|
