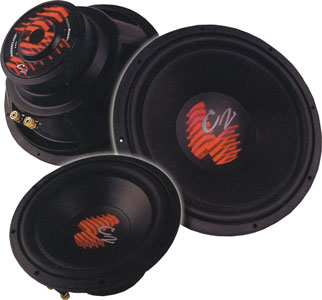

 SUBWOOFER |
|
|
Single Coil
|
| |
FEATURE:-
-
C2's exclusive
selection of large motor structure, large voice coil and very stiff
double stepped cone for added rigidity.
-
A tall top plate
and a tight gap ensure increased control of the subwoofer
-
C2 subwoofers are
perfect choice for small sealed high-powered applications, as well
as performing very well in ported and bandpass enclosures.
|
| |
|
Specification\Model |
PC 104 C2 |
|
SubWoofer Size |
10" |
|
Power Handling |
300W |
|
Voice Coil Diameter |
2" |
|
Voice coil type |
4 layer kapton |
|
Resonant frequency |
25.24Hz |
|
Qts-Total Damping |
0.38 |
VAS Equivalent
Compliance Volume |
68.14 Liter 2.4 Cu.ft. |
|
DC resistance of V.C |
3.6 Ω |
|
Sensitivity SPL @ 1W
|
89.64 dB |
|
X-Max / Linear
Excursion |
9.97 mm |
|
Peak to Peak Excursion |
17.25 mm |
|
BI Magnet Product |
11.74 TM |
|
Diaphragm Material
|
Carbon poly |
|
Basket Material |
Steel |
|
Net Weight |
8.68 lb |
|
Mounting Diameter |
9.25" DA |
|
Outer Diameter |
10.07" |
|
Mounting Depth |
4.8" |
|
Speaker displacement |
0.65 cu.ft. |
|
| |
|
| |
|
|
