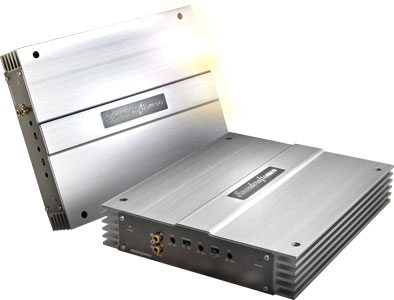

Amplifier |
|
|
 |
| |
FEATURE:-
-
2 ohm Stable
amplifier
-
MOS-FET Stable
Power Supply
-
Gold plated RCA
input Jack
-
Gold plated
Power and Speaker terminal
-
Thermal and
short protection
|
| |
|
Specification\Model |
SA - 1002 |
|
Power output at 4Ω |
100 W x 2 |
|
Power output at 2Ω |
150 W x 2 |
|
Bridged power |
350 W |
|
Adjustable Input Sensitivity |
150 mV ~ 5 V |
|
Variable HPF/LPF frequency |
50 ~ 250 Hz |
|
Power Bass boost |
12 dB @ 45 KHz |
|
Frequency Response at +/- 1 dB |
10 ~ 30 KHz |
|
T.H.D |
0.05% |
|
Signal / Noise Ratio |
90 dB |
|
Separation |
60 dB |
|
Input Impedance |
10 K Ω |
|
| |
