 PRE-Amplifier |
|
|
 |
| |
|
7 Band Graphic
Equalizer
|
|
FEATURE
- Active gain pre amplifiers
with adjustable input sensitivity.
- Volume Control with up to
7.5 Volts RMS of output.
- Individual left and right
sensitivity control for Main / Aux.
- Seven band parametric
equalizer with 12 dB boost cut.
- Low noise BI-FET op-amp
design yields minimum distortion.
- On-board 30 V bipolar
switching power supply.
- Universal Half-DIN chassis
for ease of installaion.
- High grade golden Tiffany's
RCA jack input/output.
- Subwoofer level control
- Subwoofer frequency
adjustable (40Hz ~ 120 Hz)
- 20 dB Headroom eliminates
signal overload
- Main/Aux (Radio/CD) input
selector.
- Night illumination design.
|
| |
|

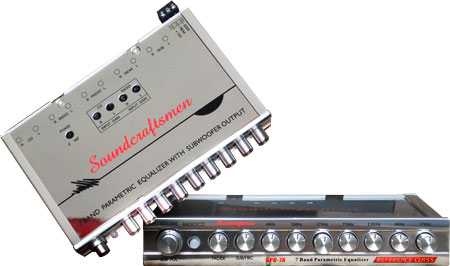

Model |
SPR-7X |
|
SPECIFICATIONS
|
|
7 Band
Parametric |
45 Hz |
|
100 Hz |
|
275 Hz |
|
770 Hz |
|
2.2 KHz |
|
6 KHz |
|
17 KHz |
|
Boost/Cut |
12 dB |
|
Bandwidth |
Specific to each band-hi
shelving |
|
S/N Ratio |
80 dB REF 1 V input |
|
Frequency Response |
10 Hz ~ 50 Khz , ± 1dB |
|
Max output voltage |
7.5 V RMS |
|
T.H.D |
0.05% |
|
Input Sensitivity |
Adjustable 180 mV ~ 3.5 V RMS |
|
Headroom |
20 dB |
|
Input Impedance |
20K Ω |
|
Stereo Separation |
80 dB / 1 KHz |
|
Operation Voltage |
11 ~ 15 V Negative Ground |
|
Output Impedance |
1 K Ω |
|
Subwoofer Frequency |
40 Hz ~ 120 Hz |
|
| |
