 AMPLIFIER |
|
|
 |
| |
|
2 / 1 Channel
Amplifier |
FEATURE:-
- Power MOSFETS
- Pules Width Modulated Power Supply
- Audio Stage Design
- Protection Circuitry
- MIL Spec P.C. board
- Built in crossover & BASS Booster
|
| |
|
Specification\Model |

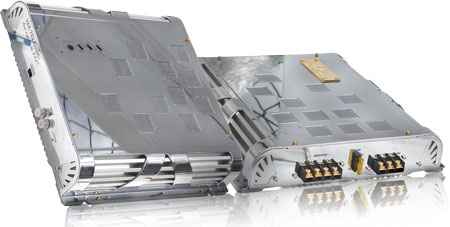

VAX 702 |
|
Power Output 4 Ω |
70 W x 2 |
| Power Output 2 Ω |
105 W x 2 |
| Bridged Output 8 Ω |
140 W x 1 |
| Bridged Output 4 Ω |
210 W x 1 |
| THD (80 KHz LPF) |
< 0.05 % |
| Frequency Response |
5 Hz ~ 50 KHz |
| S/N Ratio (IHF-A) |
> 90 dB |
| Stereo Separation |
> 55 dB |
| Input Sensitivity |
0.1 V ~ 2 V |
| Damping Factor |
> 150 |
| Input Impedance |
20 K |
| Crossover |
50 / 80 / 120 Hz LPF |
| Idle Current |
0.7 A |
| Remote Voltage |
7 V ~ 14.4 V |
| Bass |
0—6—12 dB |
| Phase Switch |
0°, 180° |
| Fuse Rating |
20 A |
|
| |
