 KARAOKE
AV AMPLIFIER |
|
|
| |
|
DSP

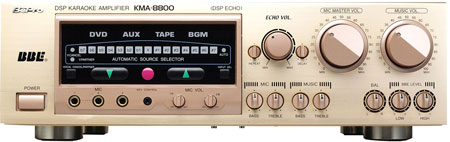

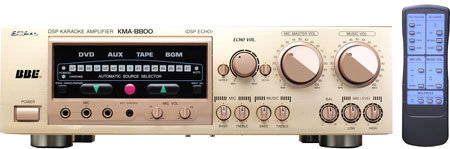

KARAOKE AMPLIFIER
- FEATURE:
-
-
POWER
output 150W + 150 W (8 ohms)
-
Four line
inputs & four video inputs
-
Recording
OUTPUT terminal.
-
Microphone
low/high frequency and adjust the resonance
-
Effector
terminal digital multi echo.
-
3
Microphone available simultaneously
-

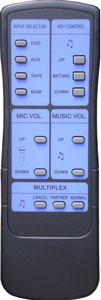

Wireless
remote controller
|
| |
|
Specification \ Model |
KM 8800 |
|
Ampllfier |
|
Audio output power |
150W+150W(8Ω) |
|
Total harmonic
distortion(1KHz,-3dB,8Ω) |
0.04% |
|
Audio
input(sensitivity/impedance) |
|
|
|
MIC |
3.3mV/10KΩ |
|
|
DVD, AUX, TAPE |
250mV/22KΩ |
|
|
BGM |
250mV/22KΩ |
|
Audio output (Level/impedance) |
|
PRE-OUT |
1.8V/1KΩ |
|
Frequency
response |
|
MIC |
20Hz~15KHz,0/-3dB |
|
MIC LOW
CUT |
20Hz~20KHz,0/-3dB |
|
Tone
control response |
|
Music
Tone |
Bass |
±10dB(100Hz) |
|
|
Treble |
±10dB(10KHz) |
|
Mic Tone |
Bass |
±10dB(100Hz) |
|
|
Treble |
±10dB(10KHz) |
|
Speaker Terminal Output |
|
|
1 System only 1 & 2 |
4 Ω ~ 16 Ω |
|
|
2 Sys Operation 1 &2 |
8 Ω ~ 16 Ω |
|
Key control range |
14 steps ± 2.5 tones |
|
Video Input (Sensitivity /
Input impedance) |
1 Vp-p / 75 Ω |
|
Video Output (Output level /
Output impedance) |
1 Vp-p / 75 Ω |
|
|
| |
|
| |
|
|
