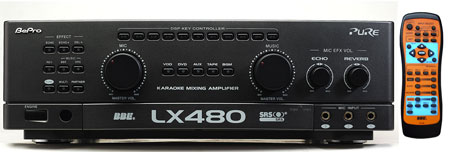

Hi-End Karaoke Amplifier |
|
|
Hi-End Karaoke Mixing
Amplifier
|
| |
FEATURE:-
-
Pure
Direct function can make the musical fidelity straightly
close to the Hi-Fi.
-
Built-in
the music effect and the function of surround simulation
from American professional BBE and SRS
-
Provided
with Mic Compressor / Limiter that can inhibit burst
sound pressure
-
Incorporated variety of sound effects from the advanced
DSP Echo + Reverb to microphone
-
Emedded
the Mic Low Cutoff circuitry to suppress the resonance
at low frequency.
-
Built-in
functions of automatic volume balance AGC and automatic
volume setup.
-
Applied
the design of high-order Parametric EQ to avoid
microphone's howling
-
Mounted
the high-order Parametric EQ to avoid microphone's
howling.
-
Mounted
the high-order YAMAHA DSP YSS-205F chip to obtain a
timbre of exquisiteness.
-
Externally
connected the expansion loop configuration to further
ease the treatment of sound effect.
-
Applied
the OSD display to make the user interface easy for
operation.
-
Can be
linked to remote control comptuer
|
| |
|
Specification \ Model |
LX 480 |
|
Ampllfier |
|
Audio output power |
120W+120W(8Ω) |
|
Total harmonic
distortion(1KHz,-3dB,8Ω) |
0.05% |
|
Audio
input(sensitivity/impedance) |
|
|
|
MIC |
3.5mV/3.3KΩ |
|
|
MUSIC |
350mV/33KΩ |
|
Audio output (Level/impedance) |
|
PRE-OUT |
2.8V/1KΩ |
|
Overload Output Voltage |
9.6V/1KΩ |
|
SUB OUT(Balance) |
5.2V/1KΩ |
|
Recording output |
340mV/1KΩ |
|
Frequency
response |
|
MIC |
20Hz~15KHz,-0.2~-1dB |
|
MIC LOW
CUT |
20Hz~1KHz |
|
MUSIC |
20Hz~20KHz,-1~0.5dB |
|
SUBWOOFER |
20Hz~200Hz |
|
Tone
control response |
|
MIC BASS |
+9~-11dB(100Hz) |
|
GAIN |
+11.5~-13.5dB(1KHz) |
|
FREQ |
95~4KHz |
|
TREBLE |
+6.5~8.5dB(10KHz) |
|
LOW CUT |
20~1KHz(-18dB) |
|
MUSIC BASS |
±8.5dB(100Hz) |
|
TREBLE |
±9.5dB(10KHz) |
|
BBE-LOW |
+8(100Hz) |
|
BBE-HIGHT |
+9(10KHz) |
|
Speaker Impedance(A/B) |
8Ω ~ 16Ω |
|
Music key control range |
11Step+-2.5Pitch |
|
Video input(sensitivity/input
impedance) |
1Vp-p/75Ω |
|
Video output(output
level/output impedance) |
1Vp-p/75Ω |
|
Echo delay time (MAX) |
300ms |
|
Echo repeat time (MAX) |
5Sec |
|
Reverb delay time (MAX) |
10Sec |
|
|
| |
|
| |
|
|
