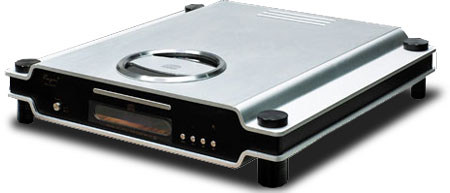

 HI-FI
CD player |
|
|
|
| |
|
FEATURE:
- Aluminium
design with lattice VFD display showing nobility
and elegance.
- SONY
KSS213 mechanism system and PHILIPS CD18 servo
circuitry are used.
- PCM1792
chips from American BB company are used for
digital filtration and D/A switch.
- Two
12AU7 tubes are used for analogue output.
- One
12AU7 is used for tube rectification of analogue
circuit.
- With
optical digital output and coaxial digital output.
- Low-pass
filter circuit takes high quality audio specially
used opamp.
- EI
audio transformer are specially manufactured
for CAYIN MP-CD100S by applying our unique workmanship,
which has low magnetic leakage and high efficiency.
|
|
| |
|
Model
|
MP CP 100S
|
|
SPECIFICATIONS
|
|
Output level |
2V |
| Frequency
Response |
20 Hz ~ 20 KHz |
|
Distortion |
0.3 % |
| S/N
Ratio |
95 dB |
|
Dynamic range |
110 dB |
| Crosstalk
(1KHz) |
-70 dB |
|
Weight |
20 Kg |
| Power
Consumption |
30 W |
|
Size |
440 mm x 101 mm x
440 mm |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
