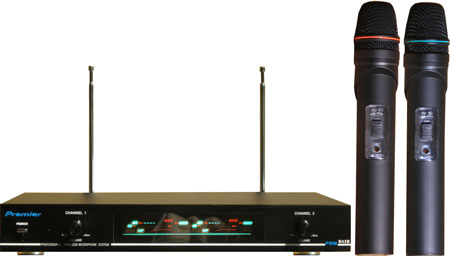

 Wireless
Micorphone |
|
|
|
| |
|
FEATURE:
|
| |
|
Model |
PWM 801 B
|
|
SPECIFICATIONS
|
|
Frequency Range |
170 ~ 260 MHz |
|
Frequency stability |
± 0.005% |
|
Modulated mode |
FM |
|
Frequency response |
50 ~ 16 KHz |
|
Signal To Noise Ratio |
> 60 dB |
|
Maximum sound pressure |
> 120 dB |
|
Distortion factor |
< 1% |
|
Effective field |
30m |
Operation Temperature
|
10°C ~ + 50°C
|
|

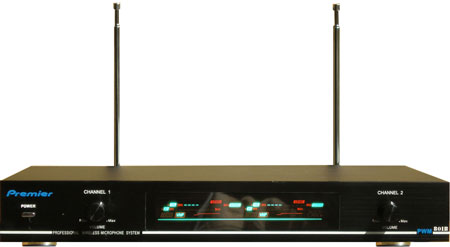

Receiver
|
|
Receiver mode |
crystal frequency lock |
|
Frequency Range |
170 ~ 260 MHz |
|
Frequency Stability |
15 PPM |
|
Sensitivity |
3µV 30 dB S/N |
|
Signal to noise ratio |
60 dB |
|
Audio output |
0~0.5V / 4.7 K |
Power
|
AC 120~240 V (±10%)
|
|

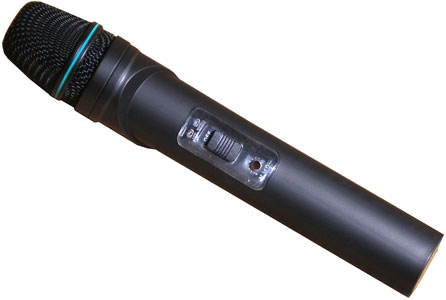

Transmitter
|
|
Frequency Range |
170 ~ 260 MHz |
|
Frequency Stability |
15 PPM |
|
Modulate mode |
FM |
|
Modulate degree |
> 30 KHz |
|
Emission Power |
30 mV Max |
|
Harmonic Suppression |
40 dB |
|
Battery |
9 V Alkaline Battery |
|
|
1.5 V AA battery |
|
|
According to different transmitter |
|
Antenna |
Built in |
|
Battery Current |
25 ~ 30 mA |
|
| |
|
| |
|
|
